HostPort handles and manipulates the port configurations on end devices. More...

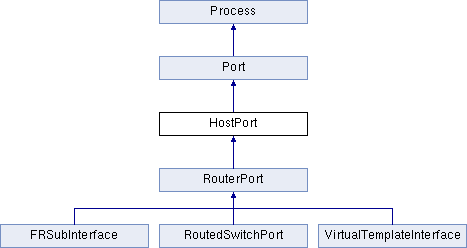

Inheritance diagram for HostPort:

Public Member Functions
void	setIpSubnetMask (ip, ip)
	Configures a static IP address and subnet mask on the port. More...

void	setDefaultArpTimeout ()
	Sets the default timer time for ARP. More...

void	setDhcpClientFlag (bool)
	Enables or disables the DHCP client on the port. More...

bool	isDhcpClientOn ()
	Returns true if the DHCP client is enabled, otherwise false. More...

ip	getIpAddress ()
	Returns the IP address configured on the port. More...

ip	getSubnetMask ()
	Returns the subnet mask configured on the port. More...

void	ipChanged (ip, ip, ip, ip)
	This event is emitted when the IP address or subnet mask changes. More...

void	setIpv6Enabled (bool)
	Enables or disables IPv6 on the port. More...

bool	isIpv6Enabled ()
	Returns true if IPv6 is enabled on the port, otherwise false. More...

void	setIpv6AddressAutoConfig (bool)
	Enables or disables IPv6 auto config. More...

bool	isIpv6AddressAutoConfig ()
	Returns true if IPv6 auto config is enabled, otherwise false. More...

bool	isSetToDhcpv6 ()
	Returns true if port is set to DHCP v6, otherwise false. More...

void	setIpv6LinkLocal (ipv6)
	Sets the IPv6 link-local address. More...

ipv6	getIpv6LinkLocal ()
	Returns the IPv6 link-local address. More...

void	ipv6LinkLocalChanged (ipv6, ipv6)
	This event is emitted when the IPv6 link-local address changes. More...

bool	addIpv6Address (ipv6, int, Ipv6AddressType, bool)
	Configures a static IPv6 address and network prefix on the port. More...

void	ipv6AddressAdded (ipv6, int, Ipv6AddressType)
	This event is emitted when the IPv6 address changes. More...

bool	removeIpv6Address (ipv6, int, Ipv6AddressType)
	Removes the IPv6 configuration from the port. More...

void	ipv6AddressRemoved (ipv6, int, Ipv6AddressType)
	This event is emitted when the IPv6 address configuration is removed. More...

void	removeAllIpv6Addresses ()
	Removes all IPv6 address configurations. More...

bool	hasIpv6Address (ipv6)
	Returns true if the specified IPv6 address is configured on the port, otherwise false. More...

Ipv6AddressConfig	getIpv6Address (ipv6)
	Returns the Ipv6AddressConfig object of the specified IPv6 address. More...

ipv6	getUnicastIpv6Address () const
	Returns a list of Ipv6AddressConfig objects associated to the port. More...

int	getUnicastIpv6Prefix ()
	Returns the port's Unicast Ipv6 Prefix. More...

vector< Ipv6AddressConfig >	getIpv6Addresses ()
	Returns a list of Ipv6AddressConfig objects associated to the port. More...

bool	isInIpv6Multicast (ipv6)
	Returns true if specified IPv6 address is a multicast address, otherwise false. More...

vector< ipv6 >	getIpv6Multicast ()
	Returns a list of IPv6 multicast addresses configured on the port. More...

void	setMtu (int)
	Sets the maximum transmission unit (MTU) value on the port. More...

int	getMtu ()
	Returns the maximum transmission unit (MTU) value configured on the port. More...

void	setIpMtu (int)
	Sets the IP maximum transmission unit (MTU) value on the port. More...

int	getIpMtu ()
	Returns the IP maximum transmission unit (MTU) value configured on the port. More...

void	setIpv6Mtu (int)
	Sets the IPv6 maximum transmission unit (MTU) value on the port. More...

int	getIpv6Mtu ()
	Returns the IPv6 maximum transmission unit (MTU) value configured on the port. More...

void	setDefaultGateway (ip)
	Sets the default gateway for this port. More...

void	setDnsServerIp (ip)
	Sets the DNS server gateway for this port. More...

void	setv6ServerIp (ipv6)
	Sets the DNS Server IPv6 gateway for this port. More...

void	setv6DefaultGateway (ipv6)
	Sets the default IPv6 gateway for this port. More...

bool	isInboundFirewallOn ()
	Returns true if the IPv4 inbound firewall is enabled, otherwise false. More...

void	setInboundFirewallService (bool)
	Enables or disables the IPv4 inbound firewall. More...

bool	isInboundIpv6FirewallOn ()
	Returns true if the IPv6 inbound firewall is enabled, otherwise false. More...

void	setInboundIpv6FirewallService (bool)
	Enables or disables the IPv6 inbound firewall. More...

Public Member Functions inherited from Port
string	getName ()
	Returns the name of the port. More...

int	getChannel ()
	Returns the channel of the port. More...

void	setChannel (int)
	Sets the channel of the port. More...

string	getTerminalTypeShortString ()
	Returns the name of the port shortened, without number. More...

string	getPortNameNumber ()
	Returns the port number. Can have something like 0/0/0, etc. More...

PortType	getType ()
	Returns the type of the port. More...

void	setDescription (string)
	Sets the description for the port. More...

string	getDescription ()
	Returns the description of the port. More...

void	setPower (bool)
	Sets the power state for the port. More...

bool	getPower ()
	Returns true if the port is on, false if the port is off. More...

void	powerChanged (bool)
	This event is emitted when the power state of the port changes. More...

bool	isStraightPins ()
	Returns true if the pins are straight, for ethernet. More...

bool	isAutoCross ()
	Returns true if the port is configured for auto crossover, for ethernet. More...

void	setBandwidth (int)
	Sets the bandwidth for the port. More...

int	getBandwidth ()
	Returns the bandwidth of the port. More...

void	setBandwidthAutoNegotiate (bool)
	Enables or disables bandwidth auto negotiation. More...

bool	isBandwidthAutoNegotiate ()
	Returns true if bandwidth auto negotiation is enabled, otherwise false. More...

void	setFullDuplex (bool)
	Enables or disables full duplex mode. More...

bool	isFullDuplex ()
	Returns true if full duplex mode is enabled, otherwise false. More...

void	setDuplexAutoNegotiate (bool)
	Enables or disables duplex auto negotiation. More...

bool	isDuplexAutoNegotiate ()
	Returns true if duplex auto negotiation is enabled, otherwise false. More...

void	setMacAddress (mac)
	Sets the MAC address on the port. More...

mac	getMacAddress ()
	Returns the MAC address set on the port. More...

void	macChanged (mac, mac)
	This event is emitted when the MAC address on the port changes. More...

mac	getBia ()
	Returns the burned-in address of the port. More...

void	setClockRate (int)
	Sets the clock rate on the port. More...

int	getClockRate ()
	Returns the clock rate on the port. More...

Link	getLink ()
	Returns the link connected to the port. More...

bool	isProtocolUp ()
	Returns true if the line protocol is up on the port, otherwise false. More...

bool	isPortUp ()
	Returns true if the status is up on the port, otherwise false. More...

Process	getEncapProcess ()
	Returns the encapsulation process. More...

Process	getKeepAliveProcess ()
	Returns the keepalive process. More...

QString	getRemotePortName ()
	Returns the name of the remote port. More...

LightStatus	getLightStatus ()
	Returns the link light status. More...

void	lightStatusChanged (LightStatus)
	This event is emitted when the link light changes. More...

void	lightBlinked ()
	This event is emitted when the link light blinks. More...

void	portStatusChanged (bool)
	This event is emitted when the port status changes. More...

void	lineProtocolChanged (bool)
	This event is emitted when the line protocol status changes. More...

void	packetReceived (string, int)
	This event is emitted when the port receives a packet. More...

void	packetSent (string, int)
	This event is emitted when the port sends a packet. More...

void	packetReceivedWithDetails (Signal, int)
	This event is emitted when the port receives a packet with details. More...

void	packetSentWithDetails (Signal, int)
	This event is emitted when the port sends a packet with details. More...

int	getHigherProcessCount ()
	Returns the higher process count. More...

HardwareQueue	getHardwareQueue ()
	Returns the hardware queue. More...

QueueProcess	getQosQueue ()
	Returns the qos queue. More...

bool	isEthernetPort ()
	Returns true if it is a ethernet port, false if not. More...

bool	isWirelessPort ()
	Returns true if it is a wireless port, false if not. More...

bool	isPowerOn ()
	Returns true if the power is on, false if not. More...

void	deleteLink ()

Public Member Functions inherited from Process
Device	getOwnerDevice ()
	Returns the device for this process. More...

Detailed Description

HostPort handles and manipulates the port configurations on end devices.

Member Function Documentation

◆ addIpv6Address()

bool HostPort::addIpv6Address	(	ipv6	,
		int	,
		Ipv6AddressType	,
		bool
	)

Configures a static IPv6 address and network prefix on the port.

Parameters

ipAddress,the	IPv6 address.
prefix,the	network prefix.
type,the	IPv6 address type. IPv6 address types: eUnicast = 0, eAnycast = 1, eEui64 = 2, eNdAssigned = 3, eDhcpAssigned = 4
bAllowDup,true	to allow duplicate IPv6 addresses, false to disallow duplicate IPv6 addresses.

◆ getIpAddress()

ip HostPort::getIpAddress ( )

Returns the IP address configured on the port.

Returns: ip, the IP address configured on the port.

◆ getIpMtu()

int HostPort::getIpMtu ( )

Returns the IP maximum transmission unit (MTU) value configured on the port.

Returns: int, the IP MTU value.

◆ getIpv6Address()

Ipv6AddressConfig HostPort::getIpv6Address ( ipv6 )

Returns the Ipv6AddressConfig object of the specified IPv6 address.

Parameters

ipAddress,the IPv6 address of interest.

Returns: Ipv6AddressConfig, the Ipv6AddressConfig object of the specified IPv6 address.

◆ getIpv6Addresses()

vector< Ipv6AddressConfig > HostPort::getIpv6Addresses ( )

Returns a list of Ipv6AddressConfig objects associated to the port.

Returns: vector<Ipv6AddressConfig>, a list of Ipv6AddressConfig objects associated to the port.

◆ getIpv6LinkLocal()

ipv6 HostPort::getIpv6LinkLocal ( )

Returns the IPv6 link-local address.

Returns: ipv6, the IPv6 link-local address.

◆ getIpv6Mtu()

int HostPort::getIpv6Mtu ( )

Returns the IPv6 maximum transmission unit (MTU) value configured on the port.

Returns: int, the IPv6 MTU value.

◆ getIpv6Multicast()

vector< ipv6 > HostPort::getIpv6Multicast ( )

Returns a list of IPv6 multicast addresses configured on the port.

Returns: vector<ipv6>, a list of IPv6 multicast addresses configured on the port.

◆ getMtu()

int HostPort::getMtu ( )

Returns the maximum transmission unit (MTU) value configured on the port.

Returns: int, the MTU value.

◆ getSubnetMask()

ip HostPort::getSubnetMask ( )

Returns the subnet mask configured on the port.

Returns: ip, the subnet mask configured on the port.

◆ getUnicastIpv6Address()

ipv6 HostPort::getUnicastIpv6Address ( ) const

Returns a list of Ipv6AddressConfig objects associated to the port.

Returns: vector<Ipv6AddressConfig>, a list of Ipv6AddressConfig objects associated to the port.

◆ getUnicastIpv6Prefix()

int HostPort::getUnicastIpv6Prefix ( )

Returns the port's Unicast Ipv6 Prefix.

Returns: int, the port's Unicast Ipv6 Prefix.

◆ hasIpv6Address()

bool HostPort::hasIpv6Address ( ipv6 )

Returns true if the specified IPv6 address is configured on the port, otherwise false.

Parameters

ipAddress,the IPv6 address of interest.

Returns: bool, true if the specified IPv6 address is configured on the port, otherwise false.

◆ ipChanged()

void HostPort::ipChanged	(	ip	,
		ip	,
		ip	,
		ip
	)

This event is emitted when the IP address or subnet mask changes.

newIp, the new IP address.
newMask, the new subnet mask.
oldIp, the old IP address.
oldMask, the old subnet mask.

IPC event.

◆ ipv6AddressAdded()

void HostPort::ipv6AddressAdded	(	ipv6	,
		int	,
		Ipv6AddressType
	)

This event is emitted when the IPv6 address changes.

Parameters

ipAddress,the	IPv6 address.
prefix,the	network prefix.
type,the	IPv6 address type. IPv6 address types: eUnicast = 0, eAnycast = 1, eEui64 = 2, eNdAssigned = 3, eDhcpAssigned = 4

IPC event.

◆ ipv6AddressRemoved()

void HostPort::ipv6AddressRemoved	(	ipv6	,
		int	,
		Ipv6AddressType
	)

This event is emitted when the IPv6 address configuration is removed.

Parameters

ipAddress,the	IPv6 address.
prefix,the	network prefix.
type,the	IPv6 address type. IPv6 address types: eUnicast = 0, eAnycast = 1, eEui64 = 2, eNdAssigned = 3, eDhcpAssigned = 4

IPC event.

◆ ipv6LinkLocalChanged()

void HostPort::ipv6LinkLocalChanged	(	ipv6	,
		ipv6
	)

This event is emitted when the IPv6 link-local address changes.

newIp, the new IPv6 link-local address.
oldIp, the old IPv6 link-local address.

IPC event.

◆ isDhcpClientOn()

bool HostPort::isDhcpClientOn ( )

Returns true if the DHCP client is enabled, otherwise false.

Returns: bool, true if the DHCP client is enabled, otherwise false.

◆ isInboundFirewallOn()

bool HostPort::isInboundFirewallOn ( )

Returns true if the IPv4 inbound firewall is enabled, otherwise false.

Returns: bool, true if the IPv4 inbound firewall is enabled, otherwise false.

◆ isInboundIpv6FirewallOn()

bool HostPort::isInboundIpv6FirewallOn ( )

Returns true if the IPv6 inbound firewall is enabled, otherwise false.

Returns: bool, true if the IPv6 inbound firewall is enabled, otherwise false.

◆ isInIpv6Multicast()

bool HostPort::isInIpv6Multicast ( ipv6 )

Returns true if specified IPv6 address is a multicast address, otherwise false.

Parameters

ipAddress,the IPv6 address of interest.

Returns: bool, true if specified IPv6 address is a multicast address, otherwise false.

◆ isIpv6AddressAutoConfig()

bool HostPort::isIpv6AddressAutoConfig ( )

Returns true if IPv6 auto config is enabled, otherwise false.

Returns: bool, true if IPv6 auto config is enabled, otherwise false.

◆ isIpv6Enabled()

bool HostPort::isIpv6Enabled ( )

Returns true if IPv6 is enabled on the port, otherwise false.

Returns: bool, true if IPv6 is enabled on the port, otherwise false.

◆ isSetToDhcpv6()

bool HostPort::isSetToDhcpv6 ( )

Returns true if port is set to DHCP v6, otherwise false.

Returns: bool, true if port is set to DHCP v6, otherwise false.

◆ removeAllIpv6Addresses()

void HostPort::removeAllIpv6Addresses ( )

Removes all IPv6 address configurations.

◆ removeIpv6Address()

bool HostPort::removeIpv6Address	(	ipv6	,
		int	,
		Ipv6AddressType
	)

Removes the IPv6 configuration from the port.

Parameters

ipAddress,the	IPv6 address.
prefix,the	network prefix.
type,the	IPv6 address type. IPv6 address types: eUnicast = 0, eAnycast = 1, eEui64 = 2, eNdAssigned = 3, eDhcpAssigned = 4

◆ setDefaultArpTimeout()

void HostPort::setDefaultArpTimeout ( )

Sets the default timer time for ARP.

◆ setDefaultGateway()

void HostPort::setDefaultGateway ( ip )

Sets the default gateway for this port.

Parameters

gateway,the IP address of the default gateway.

◆ setDhcpClientFlag()

void HostPort::setDhcpClientFlag ( bool )

Enables or disables the DHCP client on the port.

Parameters

bFlag,true to enable the DHCP client, false to disable it.

◆ setDnsServerIp()

void HostPort::setDnsServerIp ( ip )

Sets the DNS server gateway for this port.

Parameters

gateway,the IP address of the DNS gateway.

◆ setInboundFirewallService()

void HostPort::setInboundFirewallService ( bool )

Enables or disables the IPv4 inbound firewall.

Parameters

bEnable,true to enable the IPv4 inbound firewall, false to disable it.

◆ setInboundIpv6FirewallService()

void HostPort::setInboundIpv6FirewallService ( bool )

Enables or disables the IPv6 inbound firewall.

Parameters

bEnable,true to enable the IPv6 inbound firewall, false to disable it.

◆ setIpMtu()

void HostPort::setIpMtu ( int )

Sets the IP maximum transmission unit (MTU) value on the port.

Parameters

mtu,the IP MTU value.

◆ setIpSubnetMask()

void HostPort::setIpSubnetMask	(	ip	,
		ip
	)

Configures a static IP address and subnet mask on the port.

Parameters

newIpAddress,the	IP address.
newMask,the	subnet mask.

◆ setIpv6AddressAutoConfig()

void HostPort::setIpv6AddressAutoConfig ( bool )

Enables or disables IPv6 auto config.

Parameters

bAutoConfig,true to enable IPv6 auto config, false to disable it.

◆ setIpv6Enabled()

void HostPort::setIpv6Enabled ( bool )

Enables or disables IPv6 on the port.

Parameters

bEnable,true to enable IPv6, false to disable it.

◆ setIpv6LinkLocal()

void HostPort::setIpv6LinkLocal ( ipv6 )

Sets the IPv6 link-local address.

Parameters

ipAddress,the IPv6 link-local address.

◆ setIpv6Mtu()

void HostPort::setIpv6Mtu ( int )

Sets the IPv6 maximum transmission unit (MTU) value on the port.

Parameters

mtu,the IP MTU value.

◆ setMtu()

void HostPort::setMtu ( int )

Sets the maximum transmission unit (MTU) value on the port.

Parameters

mtu,the MTU value.

◆ setv6DefaultGateway()

void HostPort::setv6DefaultGateway ( ipv6 )

Sets the default IPv6 gateway for this port.

Parameters

gateway,the IPv6 address of the default gateway.

◆ setv6ServerIp()

void HostPort::setv6ServerIp ( ipv6 )

Sets the DNS Server IPv6 gateway for this port.

Parameters

gateway,the IPv6 address of the DNS gateway.

The documentation for this class was generated from the following file:

CHostPort.pki

Public Member Functions

Detailed Description

Member Function Documentation

◆ addIpv6Address()

◆ getIpAddress()

◆ getIpMtu()

◆ getIpv6Address()

◆ getIpv6Addresses()

◆ getIpv6LinkLocal()

◆ getIpv6Mtu()

◆ getIpv6Multicast()

◆ getMtu()

◆ getSubnetMask()

◆ getUnicastIpv6Address()

◆ getUnicastIpv6Prefix()

◆ hasIpv6Address()

◆ ipChanged()

◆ ipv6AddressAdded()

◆ ipv6AddressRemoved()

◆ ipv6LinkLocalChanged()

◆ isDhcpClientOn()

◆ isInboundFirewallOn()

◆ isInboundIpv6FirewallOn()

◆ isInIpv6Multicast()

◆ isIpv6AddressAutoConfig()

◆ isIpv6Enabled()

◆ isSetToDhcpv6()

◆ removeAllIpv6Addresses()

◆ removeIpv6Address()

◆ setDefaultArpTimeout()

◆ setDefaultGateway()

◆ setDhcpClientFlag()

◆ setDnsServerIp()

◆ setInboundFirewallService()

◆ setInboundIpv6FirewallService()

◆ setIpMtu()

◆ setIpSubnetMask()

◆ setIpv6AddressAutoConfig()

◆ setIpv6Enabled()

◆ setIpv6LinkLocal()

◆ setIpv6Mtu()

◆ setMtu()

◆ setv6DefaultGateway()

◆ setv6ServerIp()
