Port holds and manipulates the ports on devices. More...

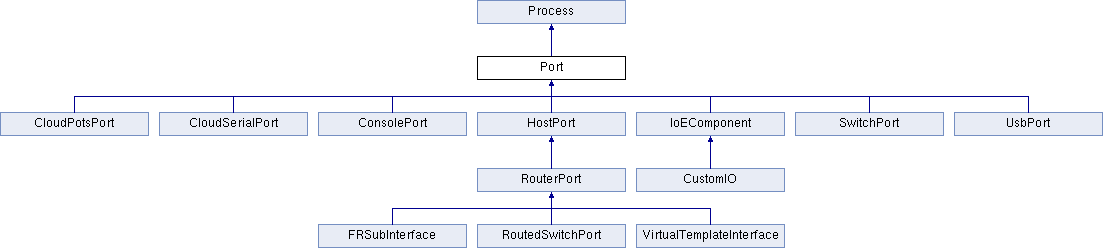

Inheritance diagram for Port:

Public Member Functions
string	getName ()
	Returns the name of the port. More...

int	getChannel ()
	Returns the channel of the port. More...

void	setChannel (int)
	Sets the channel of the port. More...

string	getTerminalTypeShortString ()
	Returns the name of the port shortened, without number. More...

string	getPortNameNumber ()
	Returns the port number. Can have something like 0/0/0, etc. More...

PortType	getType ()
	Returns the type of the port. More...

void	setDescription (string)
	Sets the description for the port. More...

string	getDescription ()
	Returns the description of the port. More...

void	setPower (bool)
	Sets the power state for the port. More...

bool	getPower ()
	Returns true if the port is on, false if the port is off. More...

void	powerChanged (bool)
	This event is emitted when the power state of the port changes. More...

bool	isStraightPins ()
	Returns true if the pins are straight, for ethernet. More...

bool	isAutoCross ()
	Returns true if the port is configured for auto crossover, for ethernet. More...

void	setBandwidth (int)
	Sets the bandwidth for the port. More...

int	getBandwidth ()
	Returns the bandwidth of the port. More...

void	setBandwidthAutoNegotiate (bool)
	Enables or disables bandwidth auto negotiation. More...

bool	isBandwidthAutoNegotiate ()
	Returns true if bandwidth auto negotiation is enabled, otherwise false. More...

void	setFullDuplex (bool)
	Enables or disables full duplex mode. More...

bool	isFullDuplex ()
	Returns true if full duplex mode is enabled, otherwise false. More...

void	setDuplexAutoNegotiate (bool)
	Enables or disables duplex auto negotiation. More...

bool	isDuplexAutoNegotiate ()
	Returns true if duplex auto negotiation is enabled, otherwise false. More...

void	setMacAddress (mac)
	Sets the MAC address on the port. More...

mac	getMacAddress ()
	Returns the MAC address set on the port. More...

void	macChanged (mac, mac)
	This event is emitted when the MAC address on the port changes. More...

mac	getBia ()
	Returns the burned-in address of the port. More...

void	setClockRate (int)
	Sets the clock rate on the port. More...

int	getClockRate ()
	Returns the clock rate on the port. More...

Link	getLink ()
	Returns the link connected to the port. More...

bool	isProtocolUp ()
	Returns true if the line protocol is up on the port, otherwise false. More...

bool	isPortUp ()
	Returns true if the status is up on the port, otherwise false. More...

Process	getEncapProcess ()
	Returns the encapsulation process. More...

Process	getKeepAliveProcess ()
	Returns the keepalive process. More...

QString	getRemotePortName ()
	Returns the name of the remote port. More...

LightStatus	getLightStatus ()
	Returns the link light status. More...

void	lightStatusChanged (LightStatus)
	This event is emitted when the link light changes. More...

void	lightBlinked ()
	This event is emitted when the link light blinks. More...

void	portStatusChanged (bool)
	This event is emitted when the port status changes. More...

void	lineProtocolChanged (bool)
	This event is emitted when the line protocol status changes. More...

void	packetReceived (string, int)
	This event is emitted when the port receives a packet. More...

void	packetSent (string, int)
	This event is emitted when the port sends a packet. More...

void	packetReceivedWithDetails (Signal, int)
	This event is emitted when the port receives a packet with details. More...

void	packetSentWithDetails (Signal, int)
	This event is emitted when the port sends a packet with details. More...

int	getHigherProcessCount ()
	Returns the higher process count. More...

HardwareQueue	getHardwareQueue ()
	Returns the hardware queue. More...

QueueProcess	getQosQueue ()
	Returns the qos queue. More...

bool	isEthernetPort ()
	Returns true if it is a ethernet port, false if not. More...

bool	isWirelessPort ()
	Returns true if it is a wireless port, false if not. More...

bool	isPowerOn ()
	Returns true if the power is on, false if not. More...

void	deleteLink ()

Public Member Functions inherited from Process
Device	getOwnerDevice ()
	Returns the device for this process. More...

Detailed Description

Port holds and manipulates the ports on devices.

Member Function Documentation

◆ deleteLink()

void Port::deleteLink ( )

◆ getBandwidth()

int Port::getBandwidth ( )

Returns the bandwidth of the port.

Returns: int, the bandwidth of the port.

◆ getBia()

mac Port::getBia ( )

Returns the burned-in address of the port.

Returns: mac, the burned-in address of the port.

◆ getChannel()

int Port::getChannel ( )

Returns the channel of the port.

Returns: int, the channel of the port.

◆ getClockRate()

int Port::getClockRate ( )

Returns the clock rate on the port.

Returns: int, the clock rate on the port.

◆ getDescription()

string Port::getDescription ( )

Returns the description of the port.

Returns: string, the description of the port.

◆ getEncapProcess()

Process Port::getEncapProcess ( )

Returns the encapsulation process.

Returns: Process, the Process object.

◆ getHardwareQueue()

HardwareQueue Port::getHardwareQueue ( )

Returns the hardware queue.

Returns: HardwareQueue, the hardware queue.

◆ getHigherProcessCount()

int Port::getHigherProcessCount ( )

Returns the higher process count.

Returns: int, the higher process count.

◆ getKeepAliveProcess()

Process Port::getKeepAliveProcess ( )

Returns the keepalive process.

Returns: Process, the Process object.

◆ getLightStatus()

LightStatus Port::getLightStatus ( )

Returns the link light status.

Returns: enum<LightStatus>, the link light status. Link light statuses: eOffLight = 0, eAmberLight = 1, eGreenLight = 2, eBlink = 3

◆ getLink()

Link Port::getLink ( )

Returns the link connected to the port.

Returns: Link, the Link object connected to the port.

◆ getMacAddress()

mac Port::getMacAddress ( )

Returns the MAC address set on the port.

Returns: mac, the MAC address set on the port.

◆ getName()

string Port::getName ( )

Returns the name of the port.

Returns: string, the name of the port.

◆ getPortNameNumber()

string Port::getPortNameNumber ( )

Returns the port number. Can have something like 0/0/0, etc.

Returns: string, the name of the port.

◆ getPower()

bool Port::getPower ( )

Returns true if the port is on, false if the port is off.

Returns: bool, true if the port is on, false if the port is off.

◆ getQosQueue()

QueueProcess Port::getQosQueue ( )

Returns the qos queue.

Returns: QueueProcess, the qos queue.

◆ getRemotePortName()

QString Port::getRemotePortName ( )

Returns the name of the remote port.

Returns: QString, the name of the remote port.

◆ getTerminalTypeShortString()

string Port::getTerminalTypeShortString ( )

Returns the name of the port shortened, without number.

Returns: string, the name of the port.

◆ getType()

PortType Port::getType ( )

Returns the type of the port.

Returns: enum<PortType>, the type of the port. Port types: eConsole = 0, eAux = 1, eCopperEthernet = 2, eCopperFastEthernet = 3, eCopperGigabitEthernet = 4, eFiberFastEthernet = 5, eFiberGigabitEthernet = 6, eSerial = 7, eSmartSerial = 8, eAccessPointWirelessG = 9, eAccessPointWirelessN = 10, eAccessPointWirelessA = 11, eHostWirelessG = 12, eHostWirelessN = 13, eSubInterface = 14, eLoopback = 15, ePortChannel = 16, eVlan = 17, eModem = 18, eRs232 = 19, eFRSubInterface = 20, eCopperCoaxial = 21, eCoaxial7 = 22, eVirtualLink = 23, eHostWirelessA = 24, eTunnel = 25, eVirtualTemplate = 26, ePtCoAxialSplitterModule = 27, eVirtualAccess = 28, eTerminal = 29, eAsync = 30, eNull = 31, eWlanGigabitEthernet = 32, eWlanConsole = 33, eBVI = 34, eAccessPoint3G = 35, eHost3G = 36, eUsbPort = 37, eGenericIoE = 38, eCustomIO = 39, eVirtualPortGroup = 40, ePoE = 41, eTty = 42, eUsbConsole = 43

◆ isAutoCross()

bool Port::isAutoCross ( )

Returns true if the port is configured for auto crossover, for ethernet.

Returns: bool, true if the port is configured for auto crossover, otherwise false.

◆ isBandwidthAutoNegotiate()

bool Port::isBandwidthAutoNegotiate ( )

Returns true if bandwidth auto negotiation is enabled, otherwise false.

Returns: bool, true if bandwidth auto negotiation is enabled, otherwise false.

◆ isDuplexAutoNegotiate()

bool Port::isDuplexAutoNegotiate ( )

Returns true if duplex auto negotiation is enabled, otherwise false.

Returns: bool, true if duplex auto negotiation is enabled, otherwise false.

◆ isEthernetPort()

bool Port::isEthernetPort ( )

Returns true if it is a ethernet port, false if not.

Returns: bool, true if it is a ethernet port, false if not.

◆ isFullDuplex()

bool Port::isFullDuplex ( )

Returns true if full duplex mode is enabled, otherwise false.

Returns: bool, true if full duplex mode is enabled, otherwise false.

◆ isPortUp()

bool Port::isPortUp ( )

Returns true if the status is up on the port, otherwise false.

Returns: bool, true if the status is up on the port, otherwise false.

◆ isPowerOn()

bool Port::isPowerOn ( )

Returns true if the power is on, false if not.

Returns: bool, true if the power is on, false if not.

◆ isProtocolUp()

bool Port::isProtocolUp ( )

Returns true if the line protocol is up on the port, otherwise false.

Returns: bool, true if the line protocol is up on the port, otherwise false.

◆ isStraightPins()

bool Port::isStraightPins ( )

Returns true if the pins are straight, for ethernet.

Returns: bool, true if the pins are straight, otherwise false.

◆ isWirelessPort()

bool Port::isWirelessPort ( )

Returns true if it is a wireless port, false if not.

Returns: bool, true if it is a wireless port, false if not.

◆ lightBlinked()

void Port::lightBlinked ( )

This event is emitted when the link light blinks.

IPC event.

◆ lightStatusChanged()

void Port::lightStatusChanged ( LightStatus )

This event is emitted when the link light changes.

status, the link light status. Link light statuses: eOffLight = 0, eAmberLight = 1, eGreenLight = 2, eBlink = 3

IPC event.

◆ lineProtocolChanged()

void Port::lineProtocolChanged ( bool )

This event is emitted when the line protocol status changes.

portUp, true if the line protocol went up, false if the line protocol went down.

IPC event.

◆ macChanged()

void Port::macChanged	(	mac	,
		mac
	)

This event is emitted when the MAC address on the port changes.

newMac, the new MAC address of the port.
oldMac, the old MAC address of the port.

IPC event.

◆ packetReceived()

void Port::packetReceived	(	string	,
		int
	)

This event is emitted when the port receives a packet.

type, the type of packet.
size, the size of the packet.

IPC event.

◆ packetReceivedWithDetails()

void Port::packetReceivedWithDetails	(	Signal	,
		int
	)

This event is emitted when the port receives a packet with details.

pdu, the traffic signal of the packet.
size, the size of the packet.

IPC event.

◆ packetSent()

void Port::packetSent	(	string	,
		int
	)

This event is emitted when the port sends a packet.

type, the type of packet.
size, the size of the packet.

IPC event.

◆ packetSentWithDetails()

void Port::packetSentWithDetails	(	Signal	,
		int
	)

This event is emitted when the port sends a packet with details.

pdu, the traffic signal of the packet.
size, the size of the packet.

IPC event.

◆ portStatusChanged()

void Port::portStatusChanged ( bool )

This event is emitted when the port status changes.

portUp, true if the port went up, false if the port went down.

IPC event.

◆ powerChanged()

void Port::powerChanged ( bool )

This event is emitted when the power state of the port changes.

on, true if the port turned on, false if the port turned off.

IPC event.

◆ setBandwidth()

void Port::setBandwidth ( int )

Sets the bandwidth for the port.

Parameters

bandwidth,the bandwidth for the port.

◆ setBandwidthAutoNegotiate()

void Port::setBandwidthAutoNegotiate ( bool )

Enables or disables bandwidth auto negotiation.

Parameters

autoNegotiate,true to enable bandwidth auto negotiation, false to disable it.

◆ setChannel()

void Port::setChannel ( int )

Sets the channel of the port.

\channel, the channel of the port.

◆ setClockRate()

void Port::setClockRate ( int )

Sets the clock rate on the port.

Parameters

clockrate,the clock rate to set on the port.

◆ setDescription()

void Port::setDescription ( string )

Sets the description for the port.

Parameters

description,the description for the port.

◆ setDuplexAutoNegotiate()

void Port::setDuplexAutoNegotiate ( bool )

Enables or disables duplex auto negotiation.

Parameters

autoNegotiate,true to enable duplex auto negotiation, false to disable it.

◆ setFullDuplex()

void Port::setFullDuplex ( bool )

Enables or disables full duplex mode.

Parameters

fullDuplex,true to enable full duplex mode, false to disable it.

◆ setMacAddress()

void Port::setMacAddress ( mac )

Sets the MAC address on the port.

Parameters

macAddress,the MAC address to set on the port.

◆ setPower()

void Port::setPower ( bool )

Sets the power state for the port.

Parameters

bOn,true to turn the port on, false to turn it off.

The documentation for this class was generated from the following file:

CPort.pki

Public Member Functions

Detailed Description

Member Function Documentation

◆ deleteLink()

◆ getBandwidth()

◆ getBia()

◆ getChannel()

◆ getClockRate()

◆ getDescription()

◆ getEncapProcess()

◆ getHardwareQueue()

◆ getHigherProcessCount()

◆ getKeepAliveProcess()

◆ getLightStatus()

◆ getLink()

◆ getMacAddress()

◆ getName()

◆ getPortNameNumber()

◆ getPower()

◆ getQosQueue()

◆ getRemotePortName()

◆ getTerminalTypeShortString()

◆ getType()

◆ isAutoCross()

◆ isBandwidthAutoNegotiate()

◆ isDuplexAutoNegotiate()

◆ isEthernetPort()

◆ isFullDuplex()

◆ isPortUp()

◆ isPowerOn()

◆ isProtocolUp()

◆ isStraightPins()

◆ isWirelessPort()

◆ lightBlinked()

◆ lightStatusChanged()

◆ lineProtocolChanged()

◆ macChanged()

◆ packetReceived()

◆ packetReceivedWithDetails()

◆ packetSent()

◆ packetSentWithDetails()

◆ portStatusChanged()

◆ powerChanged()

◆ setBandwidth()

◆ setBandwidthAutoNegotiate()

◆ setChannel()

◆ setClockRate()

◆ setDescription()

◆ setDuplexAutoNegotiate()

◆ setFullDuplex()

◆ setMacAddress()

◆ setPower()
